Description
SENKO Single Gas Detector : SGT(Disposable), SGT is a single disposable detector. (SGT-P is replaceable) It operates continuously for two years even without replacement of the battery or gas sensor in order to protect workers from oxygen deficiency or toxic gases. It measures a gas continuously and displays its concentration and raises an alarm when a risk occurs.
Features
• Disposable type(no sensor or battery change)
• Operates continuously for two years
• Excellent water / dust proof structure
• Automatic checking of the sensor trouble
• High performance audible and vibrating alarm
• Automatic logging of 30EA events
• Easy configuration and data management through IR Link
• Easy calibration through Docking Station

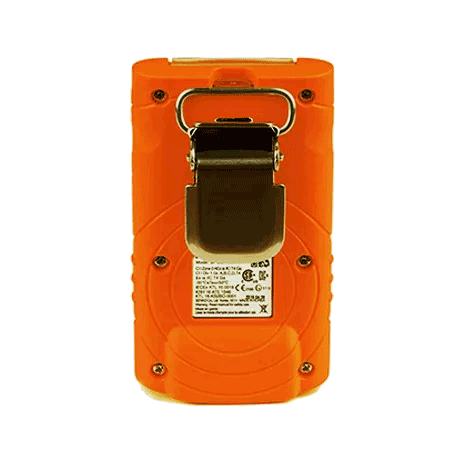

Single Gas Detector : SGT(Disposable)
Device description
SGT is an economical gas detector that can be operated continuously for two years without replacement of gas sensor to protect workers from the disasters caused by the oxygen deficiency or toxic gas poisoning. easure one gas continuously and display its concentration and raise an alarm when a risk occurs.
Major Applications
Steelworks, Petrochemical plant, Shipbuilding yard, Sewage treatment plant, Mine, Power supply works, Hermetically sealed area (manhole, tank)
Specification
| Model | SGT | |||||
|---|---|---|---|---|---|---|
| O2 | CO | SO2 | H2 | H2S | NH3 | |
| Measuring type | 전기화학식(Electrochemical Cell) | |||||
| Measuring method | Diffusion Type(Option: Sampling Type[Sp-pump 101]) | |||||
| Measuring range | 0~30%Vol | 0~500ppm | 0~20ppm | 0~1000ppm | 0~100ppm | 0~100ppm |
| Sensor life time | 2 year | > 2 year | > 2 year | > 2 year | > 2 year | > 2 year |
| Resolution | 0.1%VOL | 1ppm | 0.1ppm | 5ppm | 1ppm | 1ppm |
| Parameter Control | User Selectable via SGT IR Link and PC Software | |||||
| Display | LCD Display (Back-light) | |||||
| Alarm display | RED, Flashing LEDs(Light-Emitting Diode) | |||||
| Alarm level set | User Selectable via SGT IR Link and PC Software | |||||
| Data Log | 30 most recent events | |||||
| Mounting type | Belt Clip | |||||
| Program set mode | User Selectable via SGT IR Link and PC Software | |||||
| Operating temperature | -40°C to +50°C -35°C to +50°C (for O2) | |||||
| Operating humidity | 5% to 95% RH(Non-condensing) | |||||
| Battery | Lithium battery | |||||
| Materianl | Polycarbonate and rubber | |||||
| Dimensions | 54(W) x 91(H) 32(D)mm | |||||
| Weight | 93g | |||||
| Approval | Ex ia IIC T4 Ga/ IP67 (KTL, IECEx) | |||||
| Option | Sapling Pump[SP-Pump101], SENKO IR LINK, Docking Station(예정) | |||||
| Warranty | 2years | |||||
