VarioCAM® HD inspect 900

With its 3.1 megapixels in IR-format this worldwide unique infrared system gives a new definition to the premium segment of uncooled thermographic inspection cameras.

  • Image format: (2,048 × 1,024) IR pixel opto-mechanical MicroScan feature
  • Frame rate up to 240 Hz (half frame mode)
  • High-resolution 5.6″ TFT display with (1,280 × 800) pixel and inclinable colour viewfinder*
Infratec VarioCAM

  • MicroScan

    Integrated into camera, genuine temperature measured values

  • Detector Format

    Efficient measurement of smallest structures on large-scale objects

  • Thermal Resolution

    Precise detection of smallest temperature differences

  • High-resolution Display and Viewfinder

    Convenient camera operation and on-site evaluation even in difficult environmental conditions

  • Frame Rate

    Analysis of high-speed dynamic temperature changes and processes

Technical Specifications

Spectral range (7.5 … 14) µm
Detector Uncooled Microbolometer Focal Plane Array
Detector format (IR pixels) (1,024 × 768)
Image format with opto-mechanical MicroScan (IR pixels) (2,048 × 1,536)
Temperature measuring range (-40 … 2,000) °C*
Measurement accuracy ± 1 °C or ± 1 %*
Temperature resolution @ 30 °C Up to 0.02 K*
Frame rate Full-frame: 30 Hz (1,024 × 768), sub-frame formats*: 60 Hz (640 × 480) / 120 Hz (384 × 288) / 240 Hz (1,024 × 96)
Window mode * Yes
Storage media SDHC Card, external control computer for camera control and data acquisition*
Image storage Time-, trigger- and temperature controlled recording of 16 bit single frames or image sequences with timestamp, video streaming in MPEG format
Realtime storage * Computeraided storage of radiometric sequences by GigE interface with up to 240 Hz
Lens mount Bayonet to comfortably switch objectives, automatic objective detection and data transfer
Focus Motor-driven, automatic or manual, accurately adjustable, laser-supported autofocus*
EverSharp function * Multifocal recording allows for maximum extend of sharp focus
Zoom Up to 32× digital, stepless
Digital colour video camera 8 Megapixels, LED video light, vision mixer and cross-fade feature
Dynamic range 16 bit
Interfaces GigE-Vision* | DVI-D (HDMI) | C-Video | RS232 | USB 2.0 | WLAN* | Bluetooth*
Trigger * 2 × digital I/O, 2 × analogue I/O
Tripod adapter 1/4″ photo thread
Power supply Standard Lithium-Ion battery, energy save mode, AC adapter, (12 … 24) V DC
Integrated microphone and speaker Voice annotation feature, replay and audio dubbing
Laser range finder* * Semiconductor laser red, laser protection class 2, range up to 70 m
Integrated GPS sensor* * Image integrated storage of position data

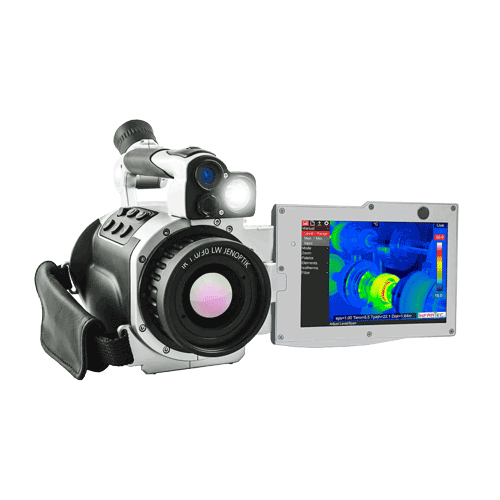

Display 5.6″ colour TFT display (1,280 × 800) pixel, 170° rotatable and 280° revolvable, daylight suited, incl. flip mirror feature
Colour viewfinder* * Tiltable colour viewfinder with diopter compensation
Grip plate with supporting loop Gummed, ergonomically shaped grip with padded, individually adaptable hand strap
Grab handle with operating function* * Gummed and ergonomically shaped, with integrated multifunctional button
Single-handed operation Intuitive operation with ergonomically arranged function keys and multifunctional joystick, programmable keys
Shoulder strap Shoulder strap made of textile
Storage and operation temperature (-40 … 70) °C, (-25 … 55) °C
Protection degree IP54, IEC 60529
Impact strength/vibration resistance in operation 25 G (IEC 68 – 2 – 29), 2 G (IEC 68 – 2 – 6)
Dimensions; weight (210 × 125 × 155) mm; 1.6 kg (basic configuration with standard lens)
Automatic functions Autofocus, permanent autofocus, automatic distance indicator, distance-dependent display of pixel size to avoid geometrically related measurement errors, autoimage, autolevel, min./max. temperature alarm: visual/acoustic, alarm triggered image storage
Measurement functions 8 freely choosable, movable measurement fields/-points, automatic hot/cold spot display: globally and internally defined measurement fields, differential temperature measurement, temperature profile, histogram, differential image, isotherms display
Further functions Camera internal emissivity correction, shutter free operation, use of various colour sets, contrast enhancement, user profile, language selection, user-specific comment data base, digital voice recording
Analysis and evaluation software* * IRBIS® 3, IRBIS® 3 report, IRBIS® 3 view, IRBIS® 3 plus*, IRBIS® 3 professional*, IRBIS® 3 remote HD, IRBIS® 3 control*, IRBIS® 3 online*, IRBIS® 3 process*, IRBIS® 3 active*, IRBIS® 3 mosaic*, IRBIS® 3 vision*, FORNAX 2*, FORNAX 2 plus*
Depending on model

Integrated GPS Receiver

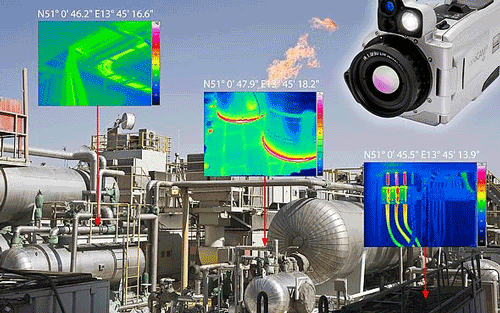

Another interesting function for maintenance tasks is the integrated GPS module. This module is able to geographically recognise the measurement location and can automatically locate as well as archive thermal images. It is useful if, for example, a various number of objects located in different places within a big facility have to be measured thermographically at regular intervals.

8 Megapixel Digital Camera

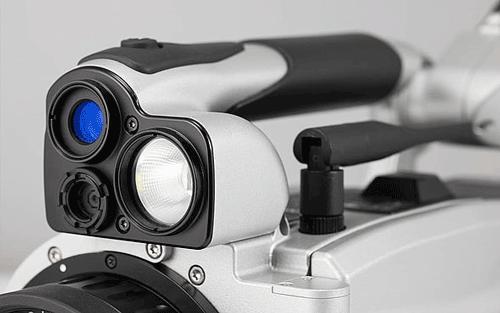

An integrated, automatically focusing digital camera with a resolution of 8 Megapixel, video function and LED video light for image illumination allows detailed as well as high-contrasted visual digital recordings.

Unrestricted Operation of the Infrared Camera in Harsh Industrial Environments

The robust light metal housing (protection degree IP54*) is ergonomically flexible designed according to  the users needs. It provides reliable protection for the high sensitive optronics of the device. In addition, it guarantees trouble-free operation even in harsh industrial environments and keeps constant the excellent optical and metrological performance parameters of the device over a long service life. The high-resolution, light intensive colour display of the infrared camera is integrated in the light metal housing. In this way a long-term and trouble-free operation of the VarioCAM® HD is guaranteed. The usage of a high-quality LEMO connector technology ensures a high protection degree of the infrared camera even for computer-based network operations.

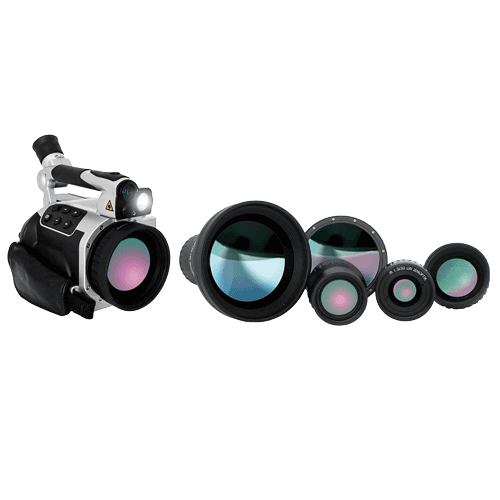

Comprehensive Range of Precision Interchangeable Lenses Enables for a Wide Range of Applications

Due to the comprehensive range of lenses for infrared cameras, a wide range of measurement objects is available, starting with micro thermography to telephoto lens applications for objects in a large distance. The optics of the VarioCAM® HD series were designed as uncompromising full lenses with an opening number of 1.0, highest transmission and transmission quality as well as low distortion.













































High-precision Calibration of Infrared Cameras Enables for High Accuracy of Measurements

The infrared camera VarioCAM® High Definition is calibrated using special algorithms. The specially developed calibration algorithm, with more than just a few calibration curves, is used for compensation of temperature fluctuations. Therefore, highest measuring accuracy and repeatability even at changing environmental temperatures is ensured. The exceptional high measuring accuracy can be reached across a wide temperature range.

Detection of Minor Defects through High Thermal Resolution

The thermal resolution describes the process to dissolve slightest temperature differences and thus, can display this measurement value. The infrared cameras of the VarioCAM® HD series have a high thermal resolution of up to 0.02 K that helps to display even slightest temperature differences with accuracy. In combination with the high-performance lenses this helps to detect critical faults at an early stage and display these in excellent quality.

Storage of Fast Infrared Sequences with up to 240 Hz

In case of sudden temperature changes, the infrared camera VarioCAM® High Definition provides a sub-frame modus (“subwindowing”) that is usually only found in cooled infrared cameras. The VarioCAM® HD series allows recording of infrared sequences with frame rates up to 240 Hz. In order to reach such high frame rates, each time a defined section of the detector is being read.

The following frame rates are available:

  • Full-frame with(1,024 × 768) IR pixels: 30 Hz
  • Sub-frame with (640 × 480) IR pixels: 60 Hz
  • Sub-frame with (320 × 240) IR pixels: 120 Hz
  • Sub-frame with (1,024 × 96) IR pixels: 240 Hz

Automatic Functions of the Infrared Camera

The numerous automatic functions, such as autofocus, automatic image optimisation, automatic hotspot display, automatic calibration range switch etc. enable a fast and effective operation.

Software

Fast and Detailed Analysis Using the Integrated IRBIS® 3 Software Package

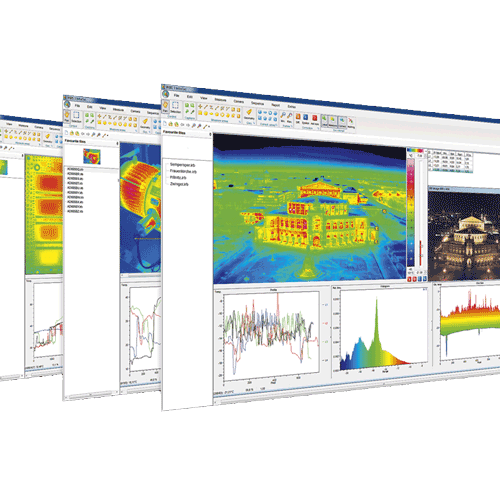

The efficiency of an infrared camera significantly depends on its data analysis software. As a standard, the thermography software package IRBIS® 3 is included in each camera delivery. This software gives a fast, precise and detailed evaluation of obtained thermograms and sequences. With this, and the copy & paste function in all WINDOWS programmes a good basis is provided for comprehensive development work.
