The mobileIR 400 is a powerful as well as cost-effective thermographic camera for mobile applications.
Geometric resolution exceeds standard formats by more than 50 mK
Fits perfectly for mobile use due to its low weight of 0.7 kg
Enables merging of infrared and visual image

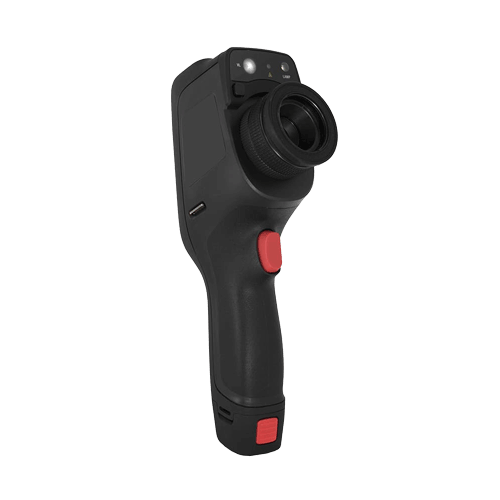

mobileIR 400
The mobileIR 400 is a powerful as well as cost-effective thermographic camera for mobile applications. It combines a robust, ergonomic design with an intuitively learnable, understandable concept for single-handed operation. Its digital, daylight compatible touchscreen reproduces the thermal images with high brilliance and provides a good overview of the current measuring situation and the operating state of the camera. The replaceable, fast chargeable Lithium-Ion battery ensures a long service life.
Detector Format
High resolution thermal images for temperature measurement
High-resolution Display and Viewfinder
Convenient camera operation and on-site evaluation even in difficult environmental conditions
Protection Degree
Constant excellent optical and metrological performance even in harsh industrial environments
Thermal Resolution
Precise detection of smallest temperature differences
Technical Specifications
Spectral range
(8 … 14) µm
Pitch
25 µm
Detector
Uncooled Microbolometer Focal Plane Array
Detector format (IR pixels)
(384 × 288)
Temperature measuring range
(-20 … 650) °C, to 1,500 °C*
Measurement accuracy
± 2 °C or ± 2 %
Temperature resolution @ 30 °C
Up to 0.045 K
Frame rate
60 Hz, 9 Hz*
Storage media
SDHC Card, 16 GB internal memory
Realtime storage
Yes: recording non radiometric thermal images (MPEG)
Focus
Manual
Zoom
Up to 4×
Digital colour video camera
5 Megapixels
Interfaces
Micro-USB, Mini-HDMI, WLAN
Power supply
AC adapter, Lithium-Ion battery
Integrated microphone and speaker
Yes
Laser range finder*
Yes

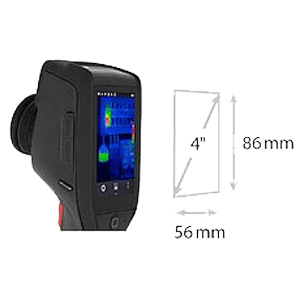

Display
4″-TFT-Farbdisplay (480 x 800) Pixel, Touchscreen
Single-handed operation
Yes
Storage and operation temperature
(-40 … 70) °C, (-10 … 50) °C
Protection degree
IP54
Impact strength/vibration resistance in operation
25 G (IEC 68 – 2 – 29), 2 G (IEC 68 – 2 – 6)
Dimensions; weight
(274 x 110 x 78) mm; 0.65 kg without Lithium-Ion battery
Automatic functions
Temperature level and temperature range, alarm: visual and acoustic
Measurement functions
Global hot / cold spot display, center spot, 5 free choosable, movable measurement fields (line, rectangle, circle, ellipse)
Further functions
WLAN remote control, transmission of live images, internal report generator
