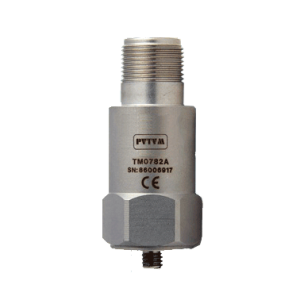

TM0782A Accelerometer
General Purpose, Industrial Piezoelectric Accelerometers
The TM0782A-K accelerometer kit consists of one accelerometer and one 5 meter cable. This accelerometer kit directly interfaces with PVTVM’s signal conditioners: DTM, TR transmitters, DM Dual Monitors and PT580 vibration switches to measure case vibration in acceleration or velocity.
Product Detail:
Specifications
Electrical
Sensitivity: 100mV/g, @ 25oC, ±10%
Frequency Response: 0.5 – 10,000Hz (±3dB)
Acceleration Range: 50g
Isolation: Fully isolated
Electrical Noise: 0.0007g
Power Requirement: 2 – 10mA constant current
18 – 30VDC
Bias Voltage: 10 – 14VDC
Resonance Frequency: 30 kHz
Maximum Transmission Distance:
300 meters (1,000 feet)
Environmental and Physical
Temperature Range: -50oC to +120oC
Environmental Protection: IP67
Weight: 90 grams
Case Material: Stainless Steel
Mounting: 1/4-28UNF tapped hole
Installation Torque: 29N x M
Connection
A: Power (red)
B: COM (white)
Shield
