Description
BMC-2000 can be used in smoking cessation programs by healthcare professionals. And it also can be used as a noninvasive method to get %COHb in the patient’s blood and to screen CO poisoned patients by medical man. The small size and light weight make the BMC-2000 ideal for hand held use. It is mainly used in smoking cessation clinics; it is used for instructional purposes to check on the client’s progress and compliance.
Features
• Non-Invasive method to know how much carbon monoxide(CO) poisoned
• Indirect and simple instrument to measure carboxyhemoglobin (COHb) in blood
• Easy to discriminate smoker
• Easy to recognize the degree of CO poisoning (smoking habit)
• Two languages (English, Korean) are provided
• CE certificate of European medical equipment
• Concentration of CO in breath and percentage of COHb in blood are displayed simultaneously
• Adult / Pregnant / Young mode are provided
• Manage analysis data through software

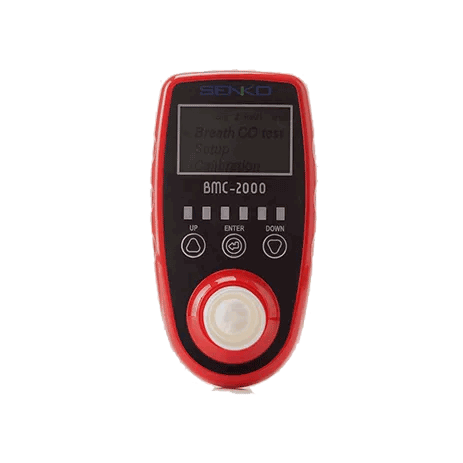

Smoking Meter: BMC-2000
Device description
BMC-2000 can be used in smoking cessation programs by healthcare professionals. And it also can be used as a noninvasive method to get %COHb in the patient’s blood and to screen CO poisoned patients by medical man. The small size and light weight make the BMC-2000 ideal for hand held use. It is mainly used in smoking cessation clinics; it is used for instructional purposes to check on the client’s progress and compliance.
Specification
| Model | BMC-2000 |
|---|---|
| Measuring gas | CO |
| Measuring type | Breath through the mouth |
| Measuring method | Electrochemical cell |
| Measuring range | 0~100ppm 0~500ppm |
| Sensor life time | 2 year |
| Countdown | 15 seconds |
| Accuracy | ±5%/Full scale or 1ppm |
| Sensor drift | 1% / month |
| Hydrogen cross sensitivity | 5~10% / Full scale |
| Resolution | 1ppm |
| Parameter Control | Front 3 switch(calibration, maintenance, configuration setting) |
| Operation mode display | Visual : Graphic LCD Display, LED Indicator Audible : buzzer |
| Measuring value display | Graphic LCD Display |
| LED indicator | 7 Steps (Green/Amber/Red) |
| Reset signal | Auto Power OFF |
| Mounting type | Pocket, Hand carry |
| User mode | Adult / Adolescent |
| Program set mode | Language(Korean, English), Age, Sound, Calibration |
| Operating temperature | 0℃~40℃ |
| Operating humidity | 5 to 90% RH(Non-condensing) |
| Operating power | < 3.0Vdc 2mA |
| Battery power | AA Size Alkaline battery 2ea |
| Battery life time | >1,000hour |
| Mouthpiece adapter | D type bacteria filter |
| Disposable mouthpiece | Diameter 22mm |
| Materianl | PC+ABS |
| LCD size | 50(W) X 30(H) mm |
| Dimensions | 140(W) × 42(H) × 74(D)mm |
| Weight | 160g |
